Precision CNC Machined Nickel-Plated Locating Pins for Fixtures
Product Details:
| Place of Origin: | China, Fujian |
| Brand Name: | Customized |
| Certification: | ISO9001:2015 |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Price can be discussed |
| Packaging Details: | Customized packaging services according to the change of package size of your goods |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1-1000 pcs 14work days |
|
Detail Information |
|||
| Keyword: | CNC Machining,high Precision | Cnc Machining Or Not: | CNC Machining |
|---|---|---|---|
| Process: | Turning,CNC Machining | Material Capabilities: | Aluminum,Brass,Stainless Steel,Copper |
| Type: | Other Machining Services,Turning | Micro Machining Or Not: | Micro Machining |
| Lead Time: | 15~25 Working Days | Product Name: | Cold Heading Parts |
| Service: | Customized OEM | Material: | Aluminum,brass,Stainless Steel |
| Tolerance: | 0.01mm | Color: | Any Color |
| Highlight: | CNC machined nickel-plated locating pins,precision locating pins for fixtures,durable CNC locating pins with warranty |
||
Product Description

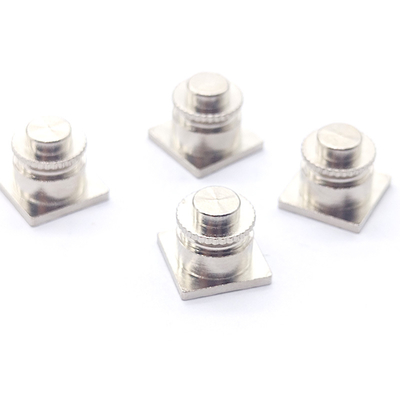

These precision nickel-plated cylindrical locating pins are engineered for accurate positioning and alignment in mechanical fixtures, automation systems, and industrial equipment. Manufactured from high-grade carbon steel and finished with a durable nickel coating, they provide excellent wear resistance, corrosion protection, and a polished appearance.
Our facility is equipped with advanced CNC machining technology to ensure high dimensional accuracy and consistent quality. We accept OEM and custom orders based on customer drawings or samples, delivering components that meet ISO9001 quality standards.
-
Material: Carbon Steel
-
Finish: Nickel Plating
-
Shape: Cylindrical body with flat locating shoulder
-
Processing: CNC turning, grinding
-
Tolerance: ±0.005mm
-
Application: Positioning, alignment in jigs, fixtures, automation
-
Customization: Drawings or samples accepted
-
Certification: ISO9001

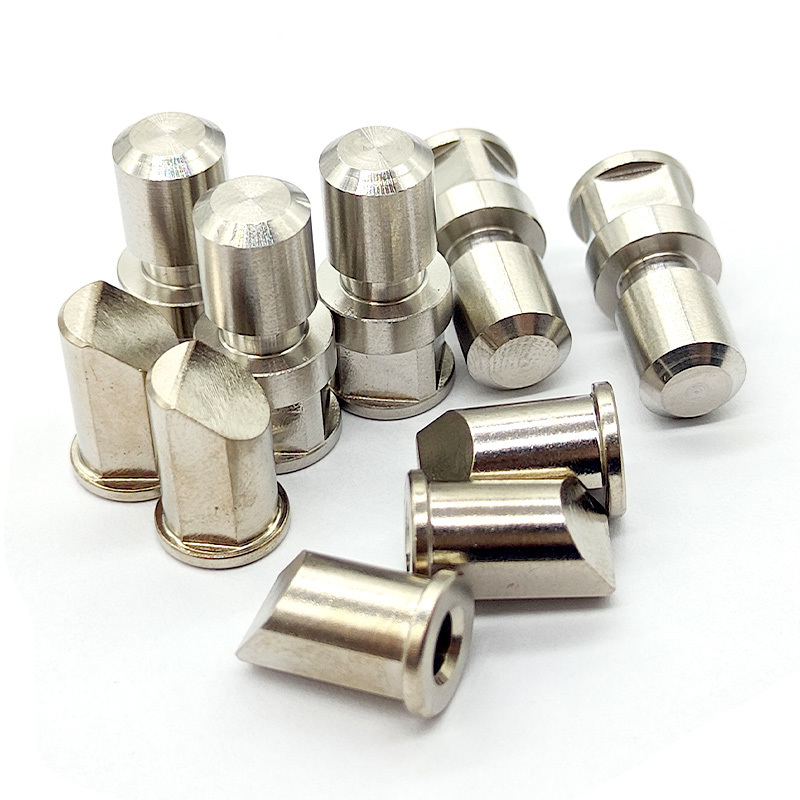

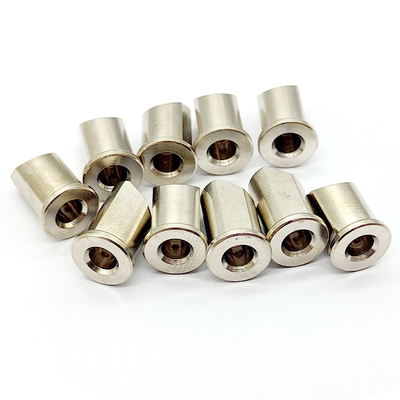

These custom nickel-plated slanted locating bushings are designed to provide stable guidance and positioning for mechanical assemblies, molds, and automation machinery. The slanted surface allows for specific directional alignment, while the high-quality carbon steel construction and nickel finish ensure durability and resistance to wear and corrosion.
We specialize in producing non-standard mechanical parts, offering flexibility in dimensions, surface treatments, and tolerances to suit various industrial requirements. With ISO9001 certification, our products guarantee performance and reliability.
| Project Description | |
| Design/size according to customer's sample or drawing | |
| Material | |
| Copper | H59 H62 lead-free copper and purple copper, etc. |
| Titanium | TC4 (TiAl6v4, grade 5). |
| Alloy steel | 15Cr, 20Cr, 42CrMo |
| Aluminum | 6061, 6063, 6082, 7075, 5052, A380, etc. |
| Plastics | POM, paraformaldehyde, nylon |
| Steel | Mild steel, carbon steel, 4140, 4340, Q235, Q345B, 20#, 45#, etc. |
| Stainless steel | SS303, SS304, (SS304 food grade), SS316, SS316L, SUS430, SS416SS201, SS301, |
| Other | |
| Surface treatment | Transparent anodizing, color anodizing (color code required, actual samples to prevent color difference), chemical film, passivation, polishing, chrome plating, sandblasting, laser engraving, zinc plating, black oxide, nickel plating, chrome plating, carburizing, heat treatment |
| Test Equipment | Rockwell Hardness TesterSalt Spray TesterRoughness TesterCloud Disc High Speed Tester SP-T300 |
